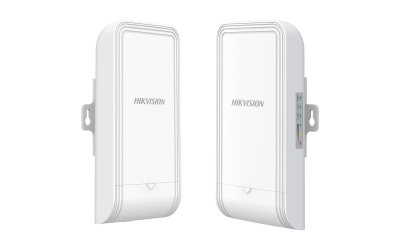

HIKVISION WIRELESS BRIDGE KIT 2.4GHZ(DS-3WF1000-EI-2N)
SKU : 6936422121327
ชุดบริดจ์ไร้สาย 2.4Ghz 300Mbps 1KM
ระยะการส่งสัญญาณไร้สายสูงสุด 1 กม
บริดจ์ไร้สาย 802.11n ความเร็ว 300 Mbps
เสาอากาศ MIMO 7dBi 2 x 2 ในตัว
การจัดการโทโพโลยีที่มองเห็นได้
เทคโนโลยีกดสัญญาณเตือนแบบเรียลไทม์
฿1,380
฿0
฿1,380
ราคาสมาชิก
฿0
ราคาสมาชิก
฿0
จำนวน
มีสินค้าอยู่ในคลัง 1 ชิ้น
รายละเอียดสินค้า
Wireless Parameters
| Max. Transmission Rate | 300 Mbps |
|---|---|
| Wireless Standard | IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps) |
| Frequency Band | 2400 MHz ~ 2483.5 MHz |
| Antenna Gain | 7 dBi |
| Antenna Angle | (H) 60° / (V) 50° |
| Transmit Power | 22 dBm @ 11n MCS0 (May vary by region) |
| Receiving Sensitivity | -87±2 dBm @ HT40 MCS0 |
| Throughput Rate | PTP: 90 Mbps @ 0.2 KM (HT40), 90 Mbps @ 0.5 KM (HT40), 70 Mbps @ 1 KM (HT40) PTMP (1 to 4): 40 Mbps @ 1 KM (HT40) |
Hardware Specifications
| Network Interface | 2 × 10/100 Mbps RJ45 ports |
|---|---|
| LED Indicators | Power, LAN, Signal Strength |
| Reset Button | Hardware Resetting Button |
| Power Supply | 1224 VDC Passive PoE |
Software Functions
| Application Features | IFM, IPM |
|---|---|
| Channel Width | 10/20/40 MHz |
| Channel Selection | Auto / Manual |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Network Protocols | NTP, SADP, HTTPS/HTTP, SSH |
| Management Methods | DHCP, Web, iVMS-4200, HPP |
| System Log | Syslog, Control center info |
| Upgrade Methods | Web, iVMS-4200, DHCP, HPP |
Hik-Partner Pro Features
| Supported Features | 1. Reboot device 2. Restore device 3. Display topology 4. Show AP & CPE connection status 5. Configure SSID, channel, power, mode 6. Bridge alignment 7. Spectrum scanning |
|---|
General Specifications
| Product Dimensions | 90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'') |
|---|---|
| Package Dimensions | 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38") |
| Net Weight | 0.26 kg (0.57 lb) per device |
| Gross Weight | 0.9 kg (1.98 lb) |
| Packing List | Wireless Bridge ×2, Power Adapter ×2, PoE Injector ×2, Binding Tape ×4, Quick Start Guide ×1, Regulatory Info ×1 |
| Packing Method | Packing in pairs |
| Installation Mode | Pole Mounting |
| Ingress Protection | IP55 |
| Working Temp | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temp | -40 °C to 80 °C (-40 °F to 176 °F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Consumption | 1.8 W typical (1-ch 2MP IPC), Max. 4.5 W |
Approvals & Certifications
| EMC | CE-EMC (EN 55032, EN 61000, EN 50130-4, EN 55035) |
|---|---|
| Safety | CB, CE-LVD, IEC 62368-1 |
| Chemistry | CE-RoHS, WEEE, REACH |
| Radio | EN 301 893, EN 300 440, EN 62311, EN 301 489-3/17 |
