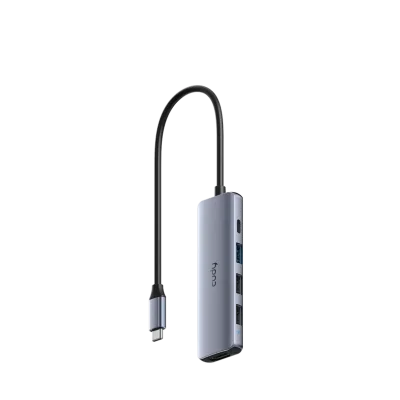

ดองเกิล USB-C แบบ Plug-and-Play สำหรับขยาย USB-C ให้เป็น HDMI และพอร์ต USB-A จำนวน 3 พอร์ต เหมาะสำหรับนักธุรกิจ อาจารย์ และนักเรียนในโรงเรียน
1× HDMI 1.4, 4K 30 Hz, 2K 60 Hz
1 × อัปสตรีม PD USB-C ตัวผู้ (5 Gbps)
1 × USB-A 3.2 เจนเนอเรชั่น 1 (5 Gbps)
2× ยูเอสบี-เอ 2.0
1 × USB-C รับ 100W PD
51 ก. (1.8 ออนซ์)
103×32×11 มม. (4.06×1.26×0.43")
พีซี/Mac/iPad/iPhone/Android/Nintendo
| Model | UH405 1.0 |
|---|---|
| Upstream Connection | 1× USB-C 3.2 Gen 1 (5 Gbps) |
| Video Output | 1× HDMI 1.4 |
| Video Output Resolutions | 4K (4096×2160) @ 30Hz 2K (2560×1440) @ 60Hz 1080P (1920×1080) @ 120Hz |
| Video Output Modes | Extend, Mirror Android phone supports mirror mode only |
| USB Ports | 1× USB-A 3.2 Gen 1 (5 Gbps) 2× USB-A 2.0 |
| Power Interface | USB-C Port |
| LED Indicator | Power |
| Power Methods | DC / PD |
| Power Input | 520V 05A |
| Max Power Consumption | 100W (with PD Adapter) 5W (powered by host USB) |
| Idle Power Consumption | 0.2W |
| Color | Silver Gray |
| Casing | Aluminum + ABS |
| Hardware Requirement | USB-C 3.2 Gen 1 / USB4 / Thunderbolt 3 / 4 |
| Compatible OS | Windows 7 or later macOS 10.12 or later Ubuntu LTS 18.04 or later Android 5 or later iPadOS / iOS Nintendo Switch (PD-IN powered) |
| Driver Installation | Driver Free |
| Operating Environment | Operating Temp: 040°C Storage Temp: -2070°C Operating Humidity: 2085% RH Storage Humidity: 1090% RH |
| Product Weight | 53 g (1.87 oz) |
| Dimensions | Main Part: 103×32×11 mm Cable: 250 mm |

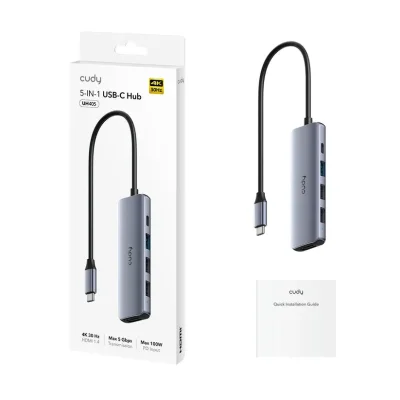

| Package Content | UH405 Installation Guide |
| Retail Package | Weight: 102.6 g Size: 90×225×18 mm |
| Carton Info | Units per Carton: 100 Net Weight: 10.3 kg Gross Weight: 11.4 kg Carton Size: 52×46.5×21 cm |
