รายการ | รายละเอียด |
---|---|
Processor | Intel® Core i3-1315U, 6C (2P + 4E) / 8T, P-core 1.2-4.5GHz, E-core 0.9-3.3GHz, 10MB |
Graphics | Integrated Intel® UHD Graphics |
Chipset | Intel® SoC Platform |
Memory | 1x 8GB SO-DIMM DDR5-5200 (สูงสุด 32GB) |
Memory Slots | 2x DDR5 SO-DIMM slots, รองรับ dual-channel |
Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
Storage Support | รองรับ 1 ไดรฟ์ สูงสุด 1TB |
Card Reader | ไม่มี |
Optical Drive | ไม่มี |
Audio Chip | Realtek® ALC233-CG, HD Audio |
Speakers | 3W x2 |
Camera | 5.0MP |
Microphone | ไมโครโฟนคู่ (Array) |
Power Supply | 90W, ประสิทธิภาพ 89% |
รายการ | รายละเอียด |
---|---|
Display | 23.8" FHD (1920x1080) IPS Anti-glare, 250nits, 99% sRGB |
Touchscreen | ไม่มี |
Keyboard | USB Calliope Keyboard, สีดำ, ภาษาไทย |
Mouse | USB Calliope Mouse, สีดำ |
Expansion Slots | 2x M.2 (WLAN และ SSD) |
Case Color | Luna Grey |
Stand | Monitor Stand |
Mounting | ไม่มี |
Wireless Charger | ไม่มี |
Form Factor | All-in-One (23.8 นิ้ว) |
Dimensions | 540 x 192 x 431 mm (21.25 x 7.56 x 16.97 นิ้ว) |
Weight | ประมาณ 6.0 กก. (13.23 ปอนด์) |
รายการ | รายละเอียด |
---|---|
Ethernet | Integrated 100/1000M |
WLAN + Bluetooth | Intel® Wi-Fi® 6 AX201 (802.11ax 2x2) + Bluetooth 5.2 |

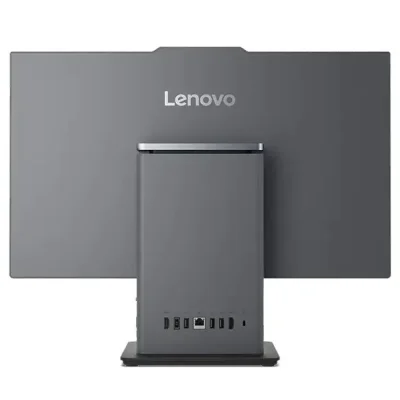

Rear Ports | 1x USB-A (USB 3.2 Gen 2) 2x USB-A (USB 2.0) 1x HDMI-in 1.4 1x HDMI-out 2.1 TMDS 1x Ethernet (RJ-45) 1x Power Connector |
Left Ports | 1x USB-C (USB 3.2 Gen 2, data only) 1x หูฟัง/ไมค์ (3.5mm combo jack) |
รายการ | รายละเอียด |
---|---|
Security Chip | Firmware TPM 2.0 (integrated in SoC) |
