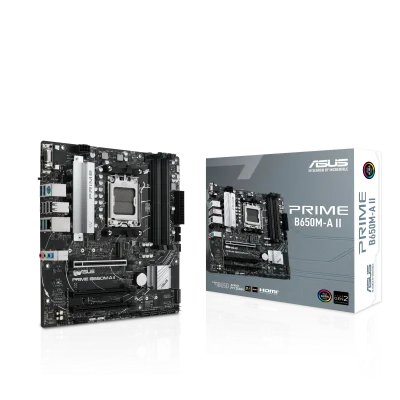

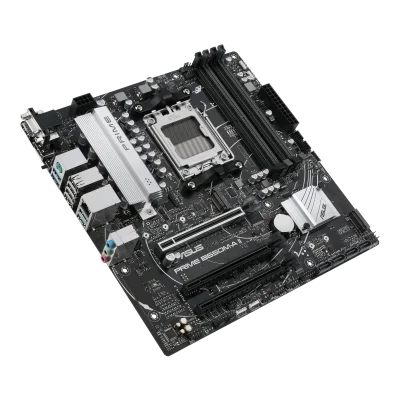

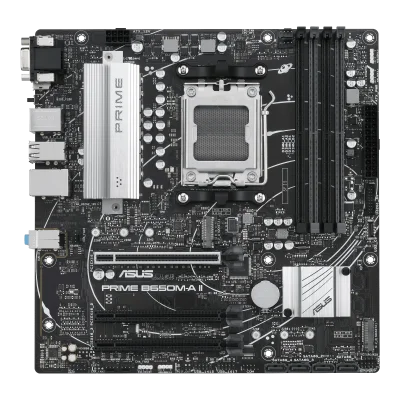

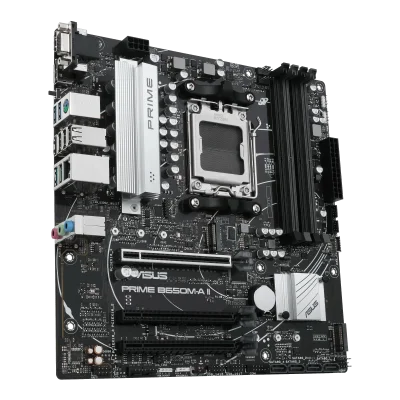

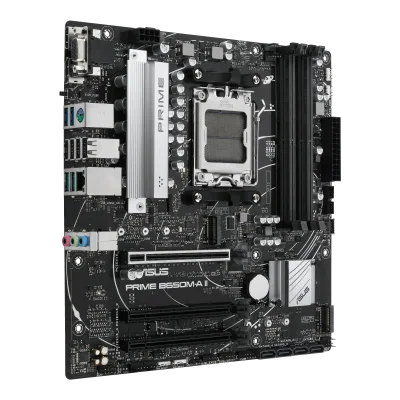

ASUS MOTHERBOARD PRIME B650M-A II (90MB1EH0-M0UAY0)

ASUS MOTHERBOARD PRIME B650M-A II (90MB1EH0-M0UAY0)

(0)

SKU : 197105025523

AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, DisplayPort, HDMI®, VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AM5 Socket for AMD Ryzen™ Desktop Processors Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

฿3,720

Quantity

2 items available

Categories : เมนบอร์ด , ASUS

Brands :ASUS

Product description

ASUS PRIME B650M-A II - Specifications
Model	PRIME B650M-A II
CPU	AMD Socket AM5 for AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors * Refer to www.asus.com for CPU support list.
Chipset	AMD B650 Chipset
Memory	4 x DIMM, Max. 192GB, DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXPO / OptiMem II * Memory support varies by CPU and configuration. * Non-ECC DDR5 Memory supports On-Die ECC.
Graphics	1 x DisplayPort (Max. 8K@60Hz) 1 x VGA port 1 x HDMI® port (4K@60Hz) * Graphics specs may vary by CPU type.
Expansion Slots	AMD Ryzen 9000 & 7000: 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) Chipset: 2 x PCIe 4.0 x16 (x1 mode)
Storage	Total: 2 x M.2 slots, 4 x SATA 6Gb/s ports M.2_1 (CPU): PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) M.2_2 (Chipset): PCIe 4.0 x4 * Supports RAID 0/1/10 (PCIe & SATA) via AMD RAIDXpert2.
Ethernet	1 x Realtek 2.5Gb Ethernet
USB	Rear (8 ports): 2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A Front (7 ports): 1 x USB 3.2 Gen 1 Type-C 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports)
Audio	Realtek 7.1 Surround Sound HD Audio CODEC Supports 24-bit/192kHz, Jack-detection, Multi-streaming Features: Audio Shielding, Premium Capacitors, Dedicated PCB Layers

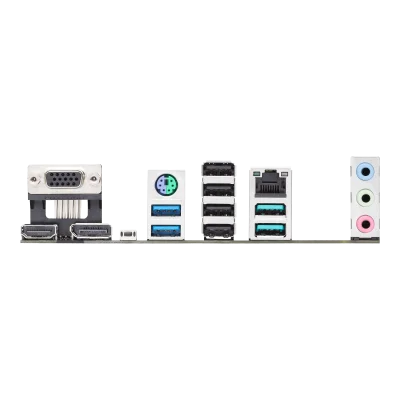

Back Panel I/O	2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A 1 x DisplayPort 1 x VGA 1 x HDMI® 1 x Realtek 2.5Gb LAN 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 combo port
Internal I/O Connectors	Cooling: 1 x CPU Fan, 1 x CPU OPT, 3 x Chassis Fan Power: 1 x 24-pin ATX, 1 x 8-pin +12V Storage: 2 x M.2, 4 x SATA 6Gb/s RGB: 3 x Addressable Gen 2, 1 x Aura RGB Misc: TPM, COM, SPDIF Out, Speaker, System Panel, Clear CMOS
Special Features	ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O) Q-Design (Q-DIMM, Q-LED Core, Q-Slot) VRM Heatsink Design BIOS FlashBack Support Aura Sync RGB Lighting
Software Features	Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving) AI Suite 3, TurboV EVO, DIGI+ VRM, PC Cleaner ASUS CPU-Z, Norton Anti-virus (Trial), WinRAR
BIOS	256 Mb Flash ROM, UEFI AMI BIOS (EZ Flash 3, CrashFree BIOS 3)
Manageability	WOL by PME, PXE
Accessories	2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Screw Package 1 x User Guide
Operating System	Windows® 11 / Windows® 10 64-bit
Form Factor	mATX, 9.6" x 9.6" (24.4cm x 24.4cm)
