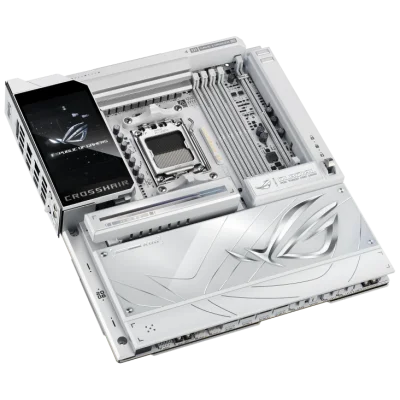

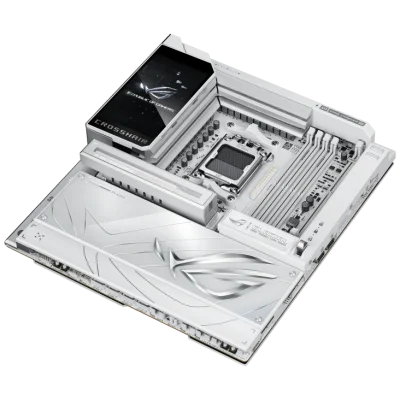

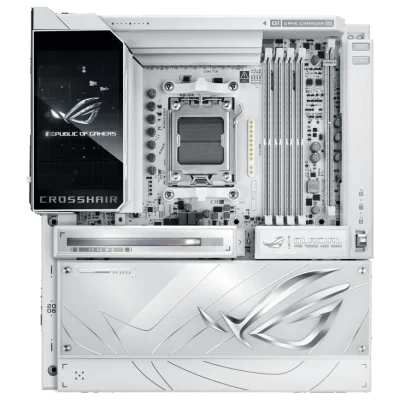

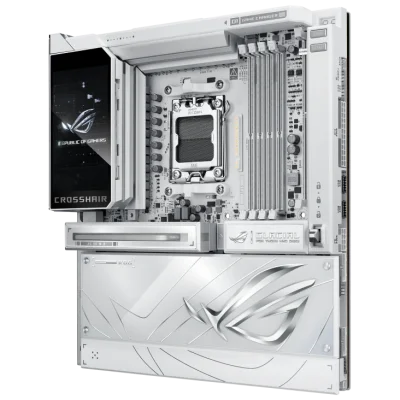

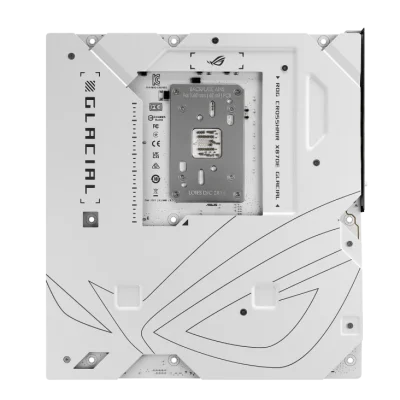

ASUS MOTHERBOARD ROG CROSSHAIR X870E GLACIAL (90MB1NQ0-M0UAY0)
SKU : 199291392052
0 Sold
฿44,990
Quantity
1 items available
Short Description
The Asus ROG CROSSHAIR X870E GLACIAL is a flagship motherboard designed for maximum performance and full AI capabilities. Equipped with a powerful 24+2+2 phase power supply, it supports advanced overclocking with Dynamic OC Switcher and Core Flex, enhances RAM performance with NitroPath DRAM technology and server-grade optimization, supports up to 7 M.2 slots, top-tier connectivity with dual 10G Ethernet, USB4 and USB-C 20Gbps with 3D VC M.2 heatsinks and a 5-inch LCD display, and intelligent system control with AI Cache Boost and AI Advisor.
• Supports AMD Socket AM5 for AMD Ryzen Series 9000/8000/7000 desktop processors
• AMD X870E chipset
• 4 x DIMM memory slots supporting up to 256GB DDR5
• 2 x USB4 ports (40Gbps) with USB Type-C video output
• 2 x PCIe 5.0 x16 slots
• Supports up to 7 x M.2 and 4 x SATA 6Gb/s storage devices
• Realtek network port • Two 10Gb Ethernet ports
• Supports Wi-Fi 7
• Supports Bluetooth v5.4
• Rear Ports:
- 2 x USB4 (40Gbps) Type-C
- 12 x USB 10Gbps (8 x Type-A + 4 x USB Type-C)
• Front Ports:
- 1 x USB 20Gbps header (supports USB Type-C, maximum power 60W PD/QC4+)*
- 1 x USB 20Gbps header (supports USB Type-C)
- 2 x USB 5Gbps headers, supporting 4 additional USB 5Gbps ports
- 3 x USB 2.0 headers, supporting 6 additional USB 2.0 ports
| ASUS ROG CROSSHAIR X870E GLACIAL | |
|---|---|
| CPU & Chipset | |
| CPU Support | AMD Socket AM5 รองรับ AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory | |
| Memory Slots | 4 x DDR5 DIMM Slots รองรับสูงสุด 256GB |
| Memory Speed | Ryzen 9000: สูงสุด 8600+ MT/s (OC) Ryzen 8000: สูงสุด 9600+ MT/s (OC) Ryzen 7000: สูงสุด 8000+ MT/s (OC) |
| Memory Features | Dual Channel, ECC / Non-ECC Support AMD EXPO, AEMP, DIMM Fit, NitroPath DRAM Technology |
| Graphics & Expansion | |
| Graphics Output | 2 x USB4® Type-C รองรับ DisplayPort สูงสุด 4K@60Hz |
| PCIe Slots | 2 x PCIe 5.0 x16 Slots พร้อม PCIe Q-Release Switch |
| Storage | |
| M.2 Slots | รองรับสูงสุด 7 x M.2 Slots PCIe 5.0 / PCIe 4.0 รองรับผ่าน DIMM.2 และ Hyper M.2 Card |
| SATA | 4 x SATA 6Gb/s Ports |
| RAID Support | RAID 0 / 1 / 5 / 10 ผ่าน AMD RAIDXpert2 |
| Networking | |
| LAN | 2 x Realtek 10Gb Ethernet |
| Wireless | Wi-Fi 7 (MediaTek MT7927) รองรับ 2.4 / 5 / 6GHz Bluetooth® 5.4 |
| USB & Connectivity | |
| Rear USB | 2 x USB4® 40Gbps Type-C 12 x USB 10Gbps Ports (8 x Type-A + 4 x Type-C) |
| Front USB | 2 x USB 20Gbps Type-C Connectors รองรับ PD/QC4+ สูงสุด 60W |
| Back Panel I/O | 2 x USB4 Type-C 12 x USB 10Gbps 2 x 10Gb LAN Optical S/PDIF BIOS FlashBack Button Clear CMOS Button |
| Audio | |
| Audio Chipset | ROG SupremeFX ALC4082 7.1 HD Audio |
| Audio Features | ESS® ES9219 QUAD DAC SupremeFX Shielding Optical S/PDIF Out รองรับ 32-Bit/384kHz Playback |
| Cooling & Power | |
| Cooling Headers | CPU Fan, CPU OPT, Chassis Fan, Radiator Fan, W_PUMP+, AIO Q-Connector |
| Power Connectors | 1 x 24-pin Main Power 2 x 8-pin CPU Power 1 x 8-pin PCIe Power |
| Special Features | |
| Extreme OC Features | FlexKey, LN2 Mode, ProbeIt, ReTry Button, Safe Boot, Start Button |
| ASUS Q-Design | PCIe Q-Release Switch Q-Code, Q-LED, Q-DIMM.2 M.2 Q-Latch / Q-Release / Q-Slide |
| Display & RGB | Full Color 5" LCD Display Aura Sync RGB Support |
| BIOS | Dual BIOS 2 x 64MB Flash ROM UEFI AMI BIOS |
| Software | |
| ROG Software | Armoury Crate, Aura Sync, Fan Xpert 4, GameFirst, AI Cooling II, ASUS AI Advisor, Turbo Vcore |
| Bundled Software | AIDA64 Extreme (1 Year) HWiNFO Dolby Atmos Adobe Creative Cloud Trial WinRAR Trial |
| Accessories | |
| Included Accessories | ROG Hyper M.2 Card with Heatsink ROG DIMM.2 with Heatsink ASUS WiFi Q-Antenna SATA Cables Fan Splitter Cables ROG Bottle Opener Q-Connector ROG Stickers & VIP Card |
| General Information | |
| Operating System | Windows® 11 |
| Form Factor | E-ATX Form Factor 30.5 cm x 27.7 cm |
