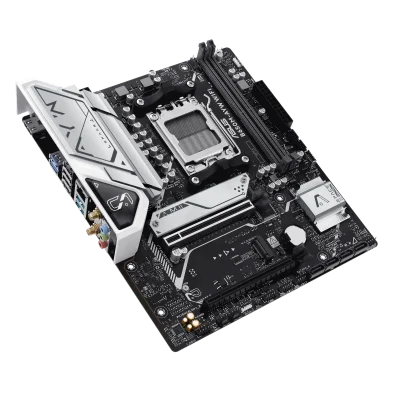

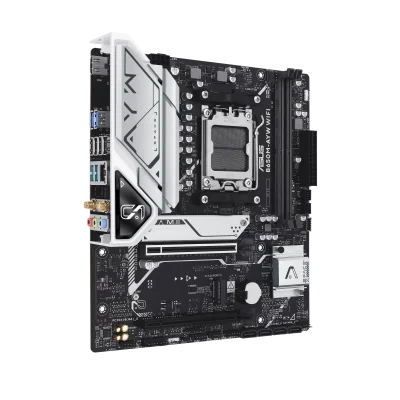

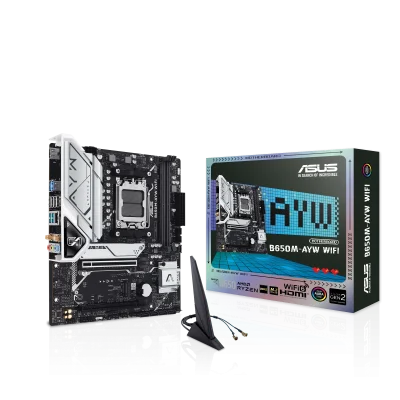

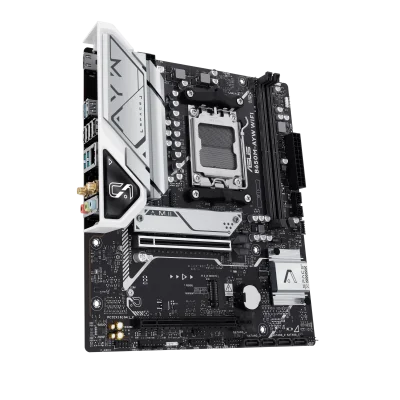

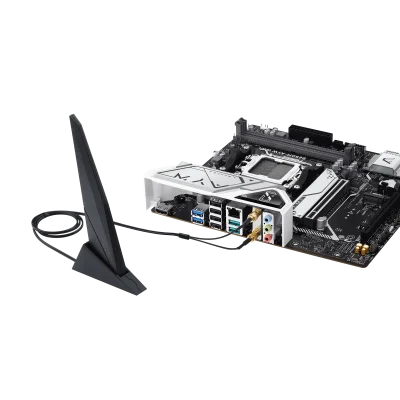

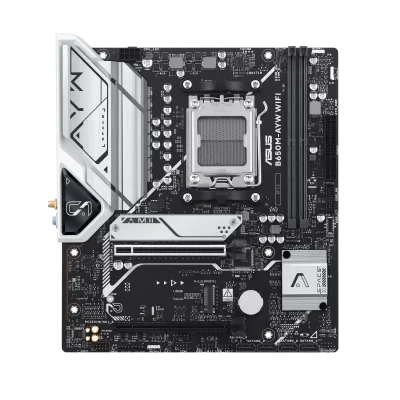

ASUS MOTHERBOARD B650M-AYW WIFI (90MB1KI0-M0UAY0)

ASUS MOTHERBOARD B650M-AYW WIFI (90MB1KI0-M0UAY0)

(0)

SKU : 197105778788

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AM5 Socket for AMD Ryzen™ Desktop Processors Ultrafast Connectivity: PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware Ready For Advanced AI PC

฿4,590

Quantity

2 items available

Categories : เมนบอร์ด , ASUS

Brands :ASUS

Product description

ASUS B650M-AYW WIFI Specs

ASUS B650M-AYW WIFI Motherboard Specification

General
Model	B650M-AYW WIFI
Form Factor	Micro-ATX (24.4 x 22.1 cm)
Chipset	AMD B650
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)
Memory
Memory Slots	2 x DDR5 DIMM, up to 96GB
Memory Speed	Up to 8000+ MT/s (OC)
Features	ECC/Non-ECC, Dual Channel, EXPO, OptiMem II
Graphics
Integrated Graphics	Depends on CPU
HDMI	1 x HDMI 2.1 (4K@60Hz)
Expansion Slots
PCIe 4.0 x16	1 Slot (CPU dependent: x16 / x8 / x4)
Additional PCIe	1 Slot (from Chipset, x4 mode)
Storage
M.2 Slots	2 x M.2 (1 x PCIe 5.0, 1 x PCIe 4.0)
SATA Ports	4 x SATA 6Gb/s
RAID Support	RAID 0/1/10 (PCIe & SATA)
Networking
Ethernet	Realtek 2.5Gb LAN
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.3
USB Ports
Rear USB	2 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A)
Front USB	1 x USB-C 5Gbps 1 x USB 5Gbps Header (for 2 ports) 2 x USB 2.0 Headers (for 4 ports)
Audio
Audio Codec	Realtek 7.1 Surround Sound HD Audio
Audio Features	Audio Shielding, Premium Capacitors, Multi-streaming, 24-bit/192kHz
Back Panel I/O
USB	2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0
Video	1 x HDMI
LAN	1 x 2.5Gb Ethernet
Wi-Fi	1 x Wi-Fi Module
Audio	3 x Audio Jacks
Internal I/O
Power	24-pin ATX, 8-pin CPU
Cooling	1 x CPU Fan, 2 x Chassis Fan headers
RGB	3 x Addressable Gen 2 headers
Other	Clear CMOS, COM, S/PDIF, Front Panel Audio, System Panel
Special Features
ASUS 5X Protection III	DIGI+ VRM, LANGuard, Overvoltage, Safeslot Core+, Steel Back I/O
Q-Design	Q-DIMM, Q-LED Core, Q-Latch, Q-Slot
Software	Armoury Crate, AI Suite 3, ASUS CPU-Z, Fan Xpert 2+, Norton 360 (Trial)
BIOS
BIOS Type	UEFI AMI BIOS, 256Mb Flash ROM
Features	EZ Flash 3, CrashFree BIOS 3, EZ Mode
Accessories
Included	2 x SATA Cables, Wi-Fi Antenna, I/O Shield, M.2 Rubber & Screws, Quick Guide
OS Support
Operating System	Windows® 11 / 10 64-bit
