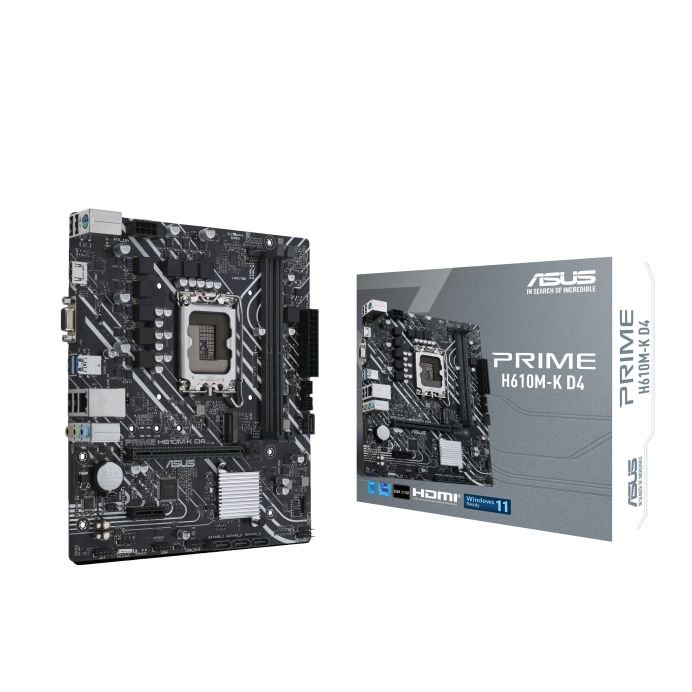

ASUS MOTHERBOARD PRIME H610M-K D4 /LGA1700 (90MB1A10-M0UAY0)
SKU : 195553565509
ASUS MOTHERBOARD PRIME H610M-K D4 /LGA1700 (90MB1A10-M0UAY0)
฿2,890
฿0
฿2,890
฿2,090
Member
฿0
Member
฿0
Quantity
9 items available
Wishlist
Brands :ASUS
Product description
Motherboard Specifications
Motherboard Specifications
| Specification | Details |
|---|---|
| CPU Socket | Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors* |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Graphics | 1 x D-Sub port 1 x HDMI® port** |
| Expansion Slots | Intel® 12th Gen Processors: 1 x PCIe 4.0 x16 slot Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports): 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Dedicated audio PCB layers |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x D-Sub port, 1 x HDMI® port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector Storage related: 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: 1 x RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O ASUS Q-Design: Q-DIMM, Q-Slot ASUS Thermal Solution: Aluminum heatsink design ASUS Lighting Control: RGB header |
| Software Features | ASUS Exclusive Software: Armoury Crate, AI Suite 3 - Performance And Power Saving Utility, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, ASUS CPU-Z, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x I/O Shield, 1 x M.2 ANCHOR |
| Installation Media | 1 x Support DVD |
| Documentation | 1 x User Guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX Form Factor, 9.2 inch x 8.0 inch (23.4 cm x 20.3 cm) |
