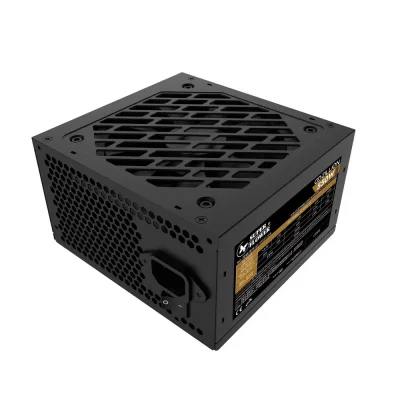

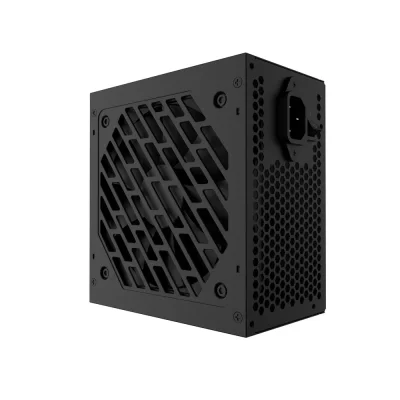

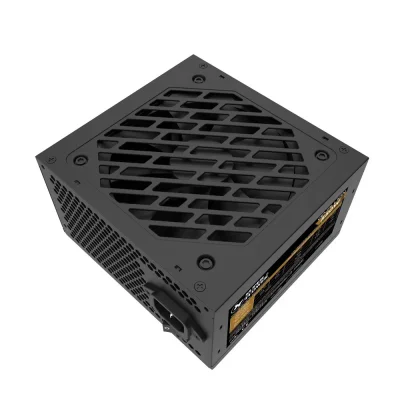

POWER SUPPLY SUPER FLOWER ZILLION 550W 80 PLUS BRONZE /BLACK (SF-550Z12DB)

POWER SUPPLY SUPER FLOWER ZILLION 550W 80 PLUS BRONZE /BLACK (SF-550Z12DB)

(0)

SKU : 4711213446900

★ Supports Intel/AMD multi-core CPUs and ATX/BTX motherboards. ★ Supports high-performance NVIDIA® SLI™ and ATI CrossFireX™ graphics cards. ★ 80 PLUS® Bronze certified, delivering 85%/88%/85% efficiency at 20%/50%/100% load. ★ Complies with ATX 12V v2.3 and EPS 12V v2.92 standards. ★ 6+2-pin PCI-E connector supports high-end graphics cards. ★ Protection systems: OVP (Overvoltage Protection) / SCP (Short Circuit Protection) / OPP (Overload Protection) / NLP (Undervoltage or Abnormal Load Protection) ★ All-flat cables for easy and organized cable management. ★ High-quality Taiwanese main capacitors with a temperature rating of up to 105°C.

฿1,390

Quantity

2 items available

Categories : พาวเวอร์ซัพพลาย , SUPER FLOWER

Brands :SUPER FLOWER

Product description

Zillion DB Bronze 550W Power Supply Specifications

Zillion DB Bronze 550W
General Specifications
Model	Zillion DB Bronze 550W
Wattage	550W
Efficiency	20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze)
Intel Power Design Guide	ATX 12V v2.3, EPS 12V v2.92 Specification
AC Input / Frequency	200V~240V \| 50-60Hz
Fan Size	120mm Sleeve Fan
Dimension	140mm(L) x 150mm(W) x 86mm(H)
Protection	OVP / SCP / OPP / NLP
Safety	TÜV / CB / CE / RoHS
Weight	Around 1.5 KG

Cable Specification
20+4 Pin	Fixed Cables 1 (500 mm)
8Pin & (4+4Pin) CPU	1 (600mm + 150mm)
SLI (2 x PCI 6+2pin)	1 (500mm + 150mm)
2SATA + 1PATA	2 (450mm + 150mm + 150mm)

Model No.	SF-550Z12DB
Power Output Table
AC Input	200240V~ 5A 5060Hz
DC Output	+3.3V	+5V	+12V	-12V	+5VSB
Max Output Current	16A	16A	42A	0.3A	3A
Max Combined Wattage	100W	504W	3.6W	15W	Total 550W
