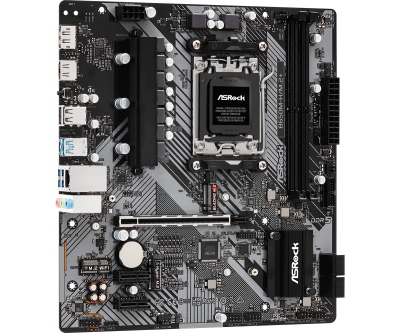

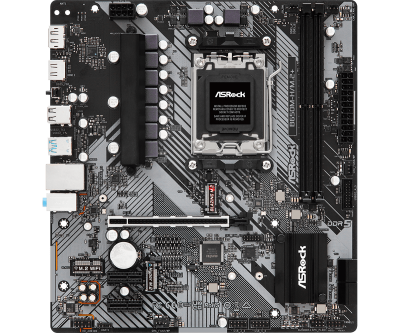

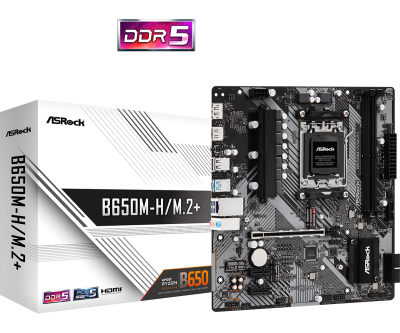

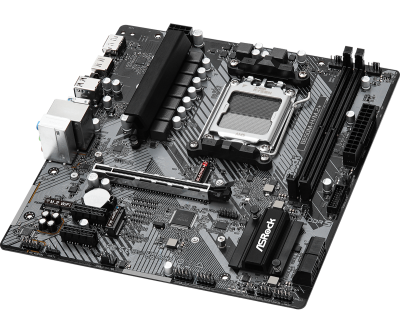

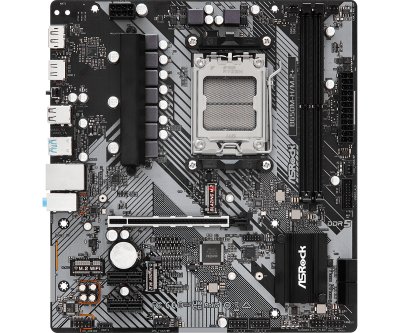

ASROCK MOTHERBOARD B650M-H/M.2+(SOCKET AM5)(90-MXBMS0-A0UAYZ)
SKU : 4710483943768
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
6+1+1 Power Phase, Dr.MOS
2 x DDR5 DIMMs
Supports Dual Channel, up to 6400+ (OC)
1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA™ 2 Graphics *
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer, BIOS Flashback
฿3,350
฿0
฿3,350
Member
฿0
Member
฿0
Quantity
1 items available
Product description
ASRock B650M Micro ATX - ข้อมูลเมนบอร์ด
| Form Factor | Micro ATX (24.4 x 22.6 cm) |
|---|---|
| Chipset | AMD B650 |
| CPU Support | AMD AM5 Ryzen 7000 / 8000 / 9000 Series |
| Memory | - 2 x DDR5 DIMM Slots, Dual Channel - รองรับ ECC/Non-ECC, สูงสุด 128GB - ความเร็วสูงสุด 6400+(OC), รองรับ XMP และ EXPO |
| Graphics Output | - 1 x HDMI 2.1 (4K @ 120Hz, HDR) - 1 x DisplayPort 1.4 (4K @ 120Hz, DSC) |
| Audio | 7.1 CH HD (Realtek ALC897), Nahimic Audio |
| LAN | Realtek RTL8111H, Gigabit LAN |
| Expansion Slots | - 1 x PCIe 4.0 x16 (CPU) - 2 x PCIe 4.0 x1 (Chipset) - 1 x M.2 (Key E) สำหรับ WiFi/BT |
| Storage | CPU: - 1 x Blazing M.2 (Gen5x4) - 1 x Hyper M.2 (Gen4x4) Chipset: - 4 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 (SATA และ M.2 NVMe) |

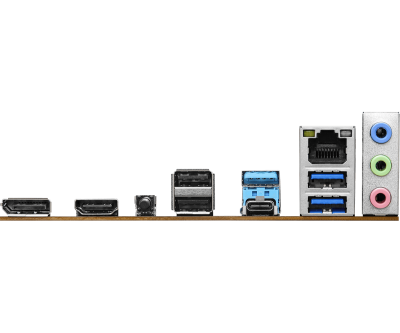

| Rear I/O Ports | - 1 x HDMI, 1 x DP - 1 x USB 3.2 Gen1 Type-C - 3 x USB 3.2 Gen1 Type-A - 2 x USB 2.0 - 1 x RJ-45 LAN, Audio Jacks - BIOS Flashback Button, WiFi Antenna Mounts |
| Internal USB | - 1 x USB 3.2 Gen1 Header (2 Ports) - 2 x USB 2.0 Headers (4 Ports) |
| Fan & Power Headers | - CPU Fan x1 (1A) - Chassis/Water Pump Fan x3 (2A, Auto Detect) - 24-pin ATX, 8-pin 12V |
| Special Features | - PCIe Gen5 M.2 Support - BIOS Flashback Button - ASRock Post Status Checker - Dual Channel DDR5 - 6+1+1 Power Phase, 50A Dr.MOS |
| Software | - ASRock A-Tuning - Auto Driver Installer - ASRock Full HD UEFI - Instant Flash |
| Accessories | - User Manual - I/O Shield - SATA Cables x2 - M.2 Screws x3 |
| Operating System | Windows 10 / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
