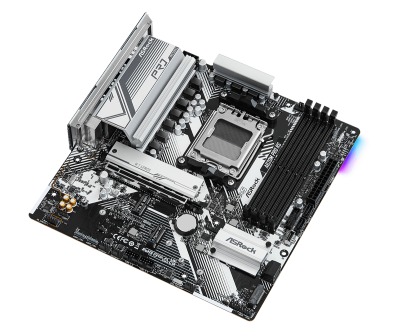

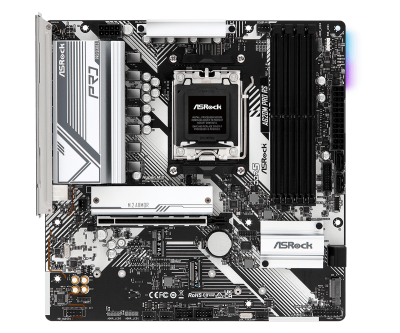

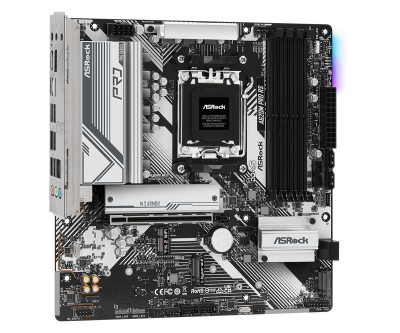

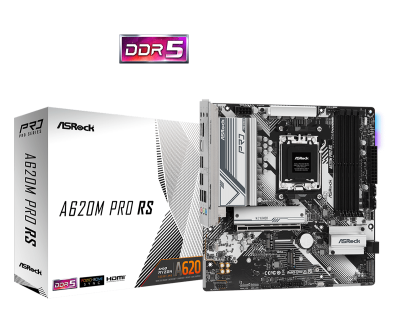

ASROCK MOTHERBOARD A620M PRO RS (SOCKET AM5) (90-MXBLN0-A0UAYZ)
SKU : 4710483943072
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
6+2+1 Power Phase, Dr.MOS
4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 4.0 x16, M.2 Key E for WiFi
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec,
Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen3x2)
2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer,
BIOS Flashback
฿3,190
฿0
฿3,190
Member
฿0
Member
฿0
Quantity
2 items available
Product description
ASRock A620M - ข้อมูลเมนบอร์ด
| Form Factor | Micro ATX (24.4 x 24.4 cm) |
|---|---|
| CPU Support | AMD AM5 Ryzen 7000, 8000, 9000 Series |
| Chipset | AMD A620 |
| Memory | - 4 x DDR5 DIMM Slots, Dual Channel - รองรับ ECC/Non-ECC, สูงสุด 256GB - รองรับความเร็วถึง 7200+(OC), XMP และ EXPO |
| Graphics Output | - 1 x HDMI 2.1 (4K@120Hz, HDR) - 1 x DisplayPort 1.4 (4K@120Hz, DSC) |
| Audio | 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio |
| LAN | Realtek 8111H, 1 Gbps |
| PCIe Slots | - 1 x PCIe 4.0 x16 (CPU) - 1 x M.2 Key E สำหรับ WiFi/BT (Chipset) |
| Storage | CPU: - 2 x Hyper M.2 (PCIe Gen4x4) Chipset: - 1 x M.2 (PCIe Gen3x2) - 4 x SATA 6Gb/s - รองรับ RAID 0/1/10 ทั้ง SATA และ NVMe* |

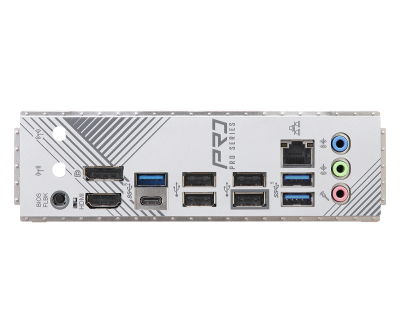

| Rear I/O | - HDMI, DisplayPort - USB 3.2 Gen1: 3 x Type-A, 1 x Type-C - USB 2.0: 4 x Type-A - RJ-45 LAN, Audio Jacks - BIOS Flashback Button, 2 x Antenna Mounts |
| Internal USB | - USB 3.2 Gen1: 1 x Header (2 Ports), 1 x Type-C Front Panel Header - USB 2.0: 2 x Headers (4 Ports) |
| Cooling & Power | - 6+2+1 Power Phase w/ 50A Dr.MOS - CPU Fan x1, CPU/Water Pump x1, Chassis/Water Pump x3 - 24-pin ATX, 8-pin 12V Power |
| Lighting | - 1 x RGB Header (12V) - 3 x Addressable RGB Headers (5V) |
| Unique Features | - Dual Channel DDR5 - Pre-Installed I/O Shield - BIOS Flashback Button - ASRock Auto Driver Installer - ASRock Post Status Checker |
| Software | - ASRock A-Tuning - ASRock Polychrome Sync - ASRock UEFI (Full HD GUI) |
| Accessories | - SATA Cables x2 - M.2 Screws x4 + Standoff - User Manual |
| Operating System | Windows 10 / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
