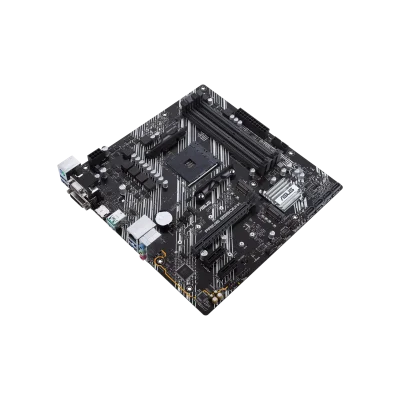

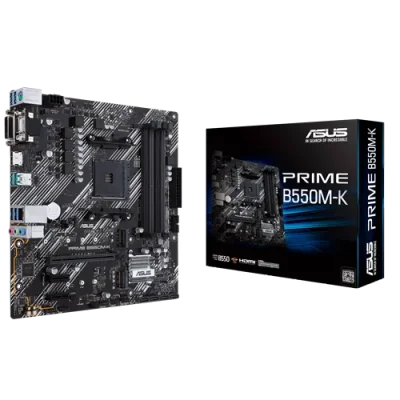

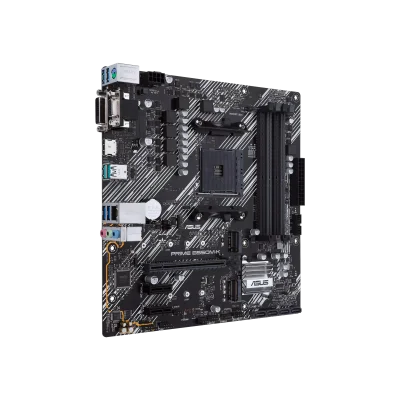

ASUS MOTHERBOARD PRIME B550M-K (90MB14V0-M0UAY0)

ASUS MOTHERBOARD PRIME B550M-K (90MB14V0-M0UAY0)

(0)

SKU : 192876758281

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Comprehensive cooling: PCH heatsink and Fan Xpert 2+ Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A 5X Protection III: Multiple hardware safeguards for all-around system protection

฿3,190

Quantity

6 items available

Categories : เมนบอร์ด , ASUS

Brands :ASUS

Product description

General
Model	PRIME B550M-K
Chipset	AMD B550
Form Factor	mATX 9.6 x 9.6 inches (24.4 x 24.4 cm)
CPU Support
Supported CPUs	AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series *Refer to ASUS website for CPU support list
Memory
Slots / Capacity	4× DIMM, Max 128GB, Dual Channel
Supported Speeds	DDR4 4800(O.C.) / 4600(O.C.) / 4466(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz ECC support depends on CPU Refer to QVL list on ASUS website
Graphics Output
Ports	1× HDMI 2.1 (4K@60Hz), 1× D-Sub, 1× DVI-D *Graphics availability depends on CPU
Expansion Slots
Slots	1× PCIe 4.0 x16 (x16 mode) 1× PCIe 3.0 x16 2× PCIe 3.0 x1
Storage
M.2 Slots	M.2_1: 2242/2260/2280/22110, PCIe 4.0 x4 & SATA M.2_2: 2242/2260/2280, PCIe 3.0 x4 & SATA
SATA Ports	4× SATA 6Gb/s, RAID 0/1/10
Networking
LAN	Realtek RTL8111H 1GbE, ASUS LANGuard
Audio
Codec	Realtek ALC887/897 7.1 Surround, 24-bit/192kHz Audio shielding, premium capacitors
USB Ports
Rear I/O	2× USB 3.2 Gen2 Type-A 4× USB 3.2 Gen1 Type-A
Internal Headers	USB 3.2 Gen1: supports 2 ports USB 2.0: supports 4 ports
Back I/O Ports

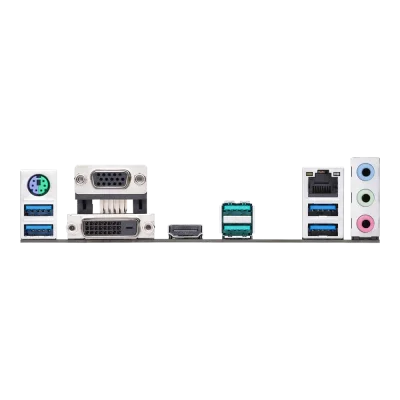

Ports	2× USB 3.2 Gen2 (Type-A) 4× USB 3.2 Gen1 1× D-Sub 1× DVI-D 1× HDMI 1× PS/2 combo 1× LAN (RJ45) 3× Audio jacks
Internal I/O
Headers	1× USB 3.2 Gen1 header 2× USB 2.0 headers 4× SATA 6Gb/s 1× CPU Fan 2× Chassis Fan 1× TPM header 1× Front panel audio (AAFP) 1× COM header 1× Clear CMOS 1× 24-pin ATX power 1× 8-pin CPU power 2× M.2 sockets
Software / BIOS
Software	Armoury Crate, AI Suite 3, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ Update, ASUS CPU-Z, AI Charger, DAEMON Tools, Norton AV (Trial), WinRAR
BIOS	256Mb Flash ROM, ASUS UEFI BIOS, EZ Flash 3, CrashFree BIOS 3
Accessories
Included	1× M.2 screw kit 2× SATA cables I/O shield User manual Support DVD
