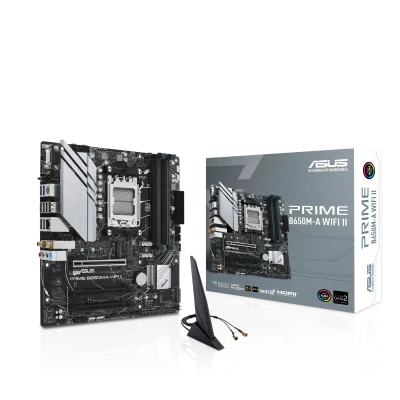

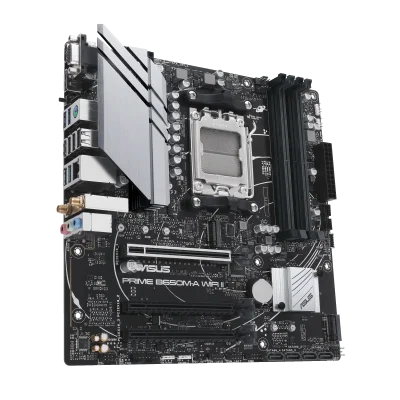

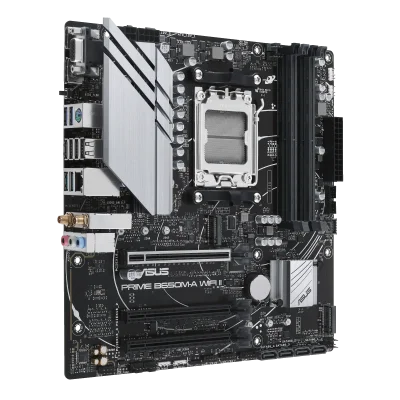

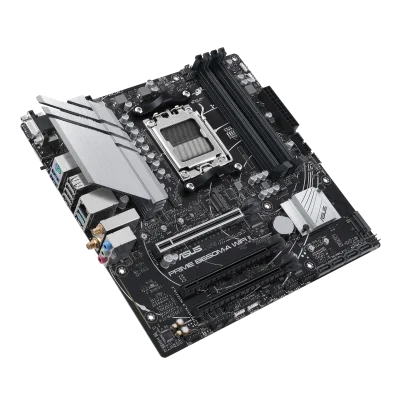

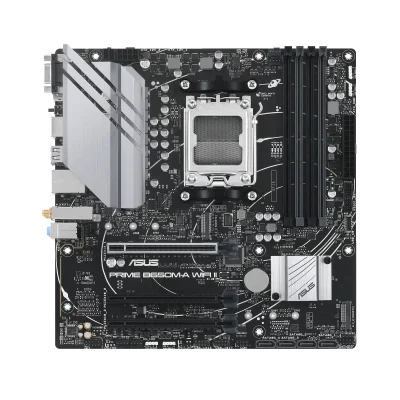

ASUS MOTHERBOARD PRIME B650M-A WIFI II-CSM (90MB1EG0-M0UAYC)

(0)
SKU : 197105034990

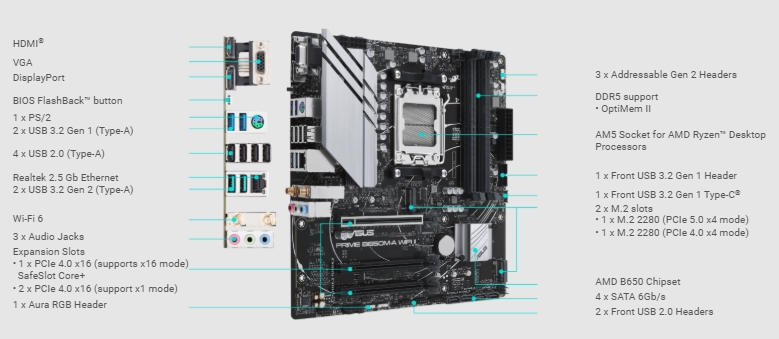

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AM5 Socket for AMD Ryzen™ Desktop Processors Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
฿4,900
฿0
฿4,900
Member

฿0
Member
฿0

Quantity
3 items available
Product description
PRIME B650M-A WIFI II Specifications

PRIME B650M-A WIFI II Specifications

Overview
ModelPRIME B650M-A WIFI II
Form FactormATX (24.4 x 24.4 cm)
ChipsetAMD B650
CPU SupportAMD Ryzen 9000/8000/7000 Series
Memory
Slots4 x DIMM
Max Capacity192GB DDR5
SpeedsUp to DDR5 7600+(OC)
FeaturesECC/Non-ECC, Dual Channel, OptiMem II, AMD EXPO
Graphics Outputs
DisplayPort1 x DisplayPort (8K@60Hz)
HDMI1 x HDMI® (4K@60Hz)
VGA1 x VGA Port
Expansion Slots
CPU Dependent1 x PCIe 4.0 x16 (varies by CPU)
Chipset2 x PCIe 4.0 x16 (x1 mode)
Storage
M.2 Slots2 x M.2 (PCIe 5.0/4.0 depending on CPU)
SATA4 x SATA 6Gb/s
RAID SupportRAID 0/1/10
Networking
EthernetRealtek 2.5Gb Ethernet
Wi-FiWi-Fi 6 (802.11 a/b/g/n/ac/ax)
BluetoothBluetooth 5.2

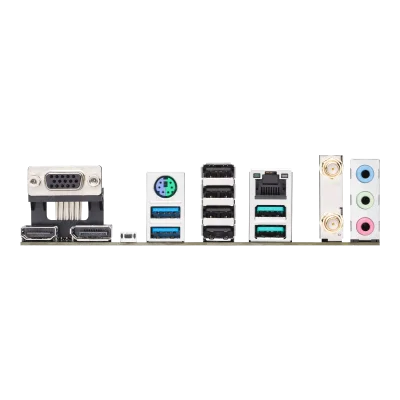

USB Ports
Rear I/O8 ports (2x USB 3.2 Gen 2, 2x Gen 1, 4x USB 2.0)
Front Panel7 ports (1x Type-C®, 2x Gen 1, 4x USB 2.0)
Audio
CodecRealtek 7.1 HD Audio
FeaturesJack-detection, Audio Shielding, Premium Capacitors
Special Features
ProtectionASUS 5X PROTECTION III, LANGuard, Safeslot Core+
DIY FeaturesQ-LED, Q-DIMM, BIOS FlashBack
Aura SyncRGB Header + Addressable Gen 2 headers
BIOS & Software
BIOS256 Mb Flash ROM, UEFI BIOS
UtilitiesArmoury Crate, AI Suite 3, MyASUS, ASUS CPU-Z
Included Accessories
Cables2 x SATA 6Gb/s
OthersWi-Fi Antennas, I/O Shield, M.2 Screws
OS Support
Operating SystemWindows® 11, Windows® 10 64-bit
