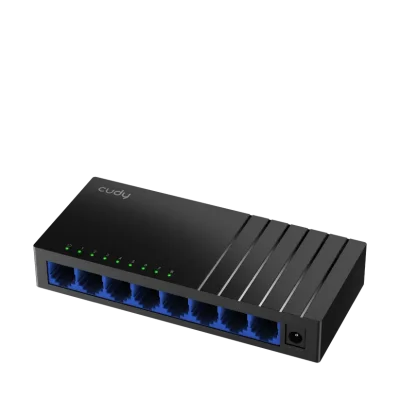

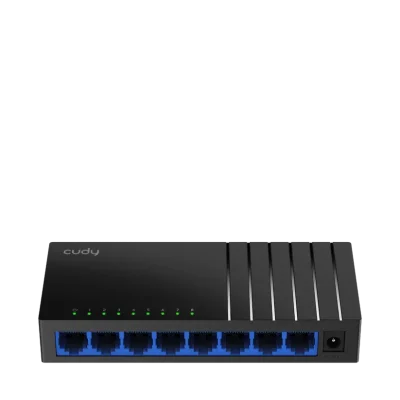

CUDY (GS108D) 8-PORT GIGABIT DESKTOP SWITCH

CUDY (GS108D) 8-PORT GIGABIT DESKTOP SWITCH

(0)

SKU : 6971690790103

฿540

8-GbE Remote Switch with Modern Design

8 × Gigabit Ethernet Ports
Gigabit Transmission Up to 170m
4 Mbit Packet Buffer
Max 2.75W, Idle 2.2W
Desktop/Wall Mountable
88×52.5×24 mm (3.46×2.07×0.94″)
87 g (3.07 oz)

Quantity

6 items available

Categories : NETWORK , CUDY

Brands :CUDY

Product description

GS108D 4.0 Specifications

Interfaces
Gigabit RJ45 Ports	8
LED	Power, Speed/Link/Act of Each Ethernet Port
Power Interface	DC Jack
Performance
Copper Speed & Distance	Cat.3+: 100m @ 10Mbps Cat.5+: 100m @ 100Mbps Cat.5e+: 170m @ Gigabit
MAC Address Table	8192
Switching Capacity	16 Gbps
Forwarding Rate	11.904 Mpps
Jumbo Frame	15 KB
Packet Buffer	4 Mbit
Power
Basic Power Saving	Supported
Power Input	5V0.55A
Adapter	Input: 100240V~, 50/60Hz Output: 5V0.55A
Max Consumption	2.75W
Idle Consumption	2.2W
Switching Standards
802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T
L2 Features
Layer 2	IGMP Snooping, Loop Prevention
Reliability
EMS	IEC/EN 61000-4-2 (ESD Level 2) Contact: 4kV \| Air: 8kV IEC/EN 61000-4-5 (Surge Level 3): 2kV
Environment	Operating: 0 ~ 40 Storage: -40 ~ 70 Operating Humidity: 10% ~ 90% Storage Humidity: 5% ~ 90%
Mechanical
Dimension	138×61.5×24 mm
Weight	89 g
Casing	Plastic
Installation	Desktop, Wall-mount
Package Content

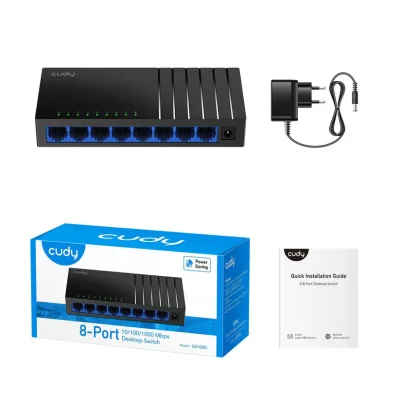

In the Box	GS108D, Power Adapter, Installation Guide
Ordering Information
Retail Package Dimension	EU/US: 151×75×63 mm UK: 151×75×81 mm
Units per Carton	50
Carton Dimension	EU/US: 33×31.7×39.5 cm UK: 43×32.5×40 cm
