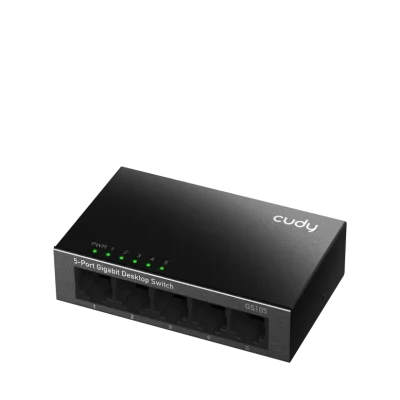

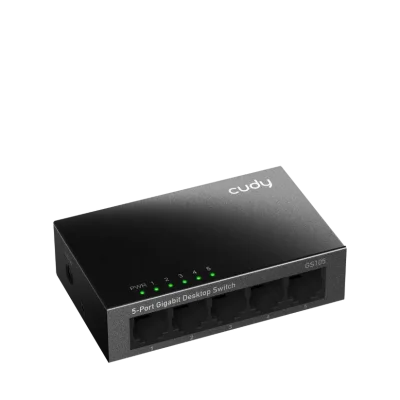

CUDY (GS105D) 5-PORT GIGABIT DESKTOP SWITCH

CUDY (GS105D) 5-PORT GIGABIT DESKTOP SWITCH

(0)

SKU : 644925515050

฿350

5-GbE Switch with Metal Housing

5 × Gigabit Ethernet Ports
Maximum Gigabit Transmission 140m
3 Mbit Packet Buffer
Max 2W, Idle 1.4W
Desktop/Wall Mountable
86.5×53×23 mm (3.41×2.09×0.91″)
112 g (3.95 oz)

Quantity

6 items available

Categories : NETWORK , CUDY

Brands :CUDY

Product description

GS105 4.0 Specifications

Interfaces
Gigabit RJ45 Ports	5
LED	Power, Speed/Link/Act of Each Ethernet Port
Power Interface	DC Jack
Performance
Copper Speed & Distance	Cat.3+: 100m @ 10Mbps Cat.5+: 100m @ 100Mbps Cat.5e+: 140m @ Gigabit
MAC Address Table	2048
Switching Capacity	10 Gbps
Forwarding Rate	7.44 Mpps
Jumbo Frame	15 KB
Packet Buffer	3 Mbit
Power
Basic Power Saving	Supported
Power Input	5V0.55A
Adapter	Input: 100240V~, 50/60Hz Output: 5V0.55A
Max Consumption	2W
Idle Consumption	1.4W
Switching Standards
802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T
Reliability
EMS	IEC/EN 61000-4-2 (ESD Level 2) Contact: 4kV \| Air: 8kV IEC/EN 61000-4-5 (Surge Level 3): 2kV
Environment	Operating: 0 ~ 40 Storage: -40 ~ 70 Humidity: 10% ~ 90% non-condensing
Mechanical
Dimension	86.5×53×23 mm
Weight	112 g
Casing	Metal
Installation	Desktop, Wall-mount
Package Content

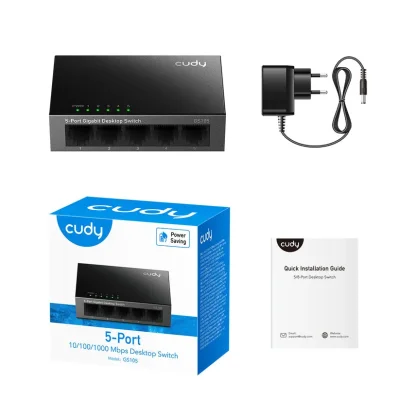

In the Box	GS105, Power Adapter, Installation Guide
Ordering Information
Retail Package Dimension	92×88×57 mm
Units per Carton	60
Carton Dimension	38.5×30.5×28.5 cm
